| M2 | M2.5 | M3 | M4 | M5 | M6 |
|---|
| dk | 4 | 6 | 7 | 8 | 9 | 12 |
| k | 0.5 | 0.6 | 0.8 | 0.9 | 1.0 | 1.2 |
| A | 30° | 30° | 30° | 30° | 30° | 30° |
| Min. Failure Torque | 0.4 N.m | 0.5 N.m | 0.95 N.m | 2.3 N.m | 4 N.m | 10 N.m |
| Tool# | T4 | T5 | T6 | T8 | T10 | T20 |

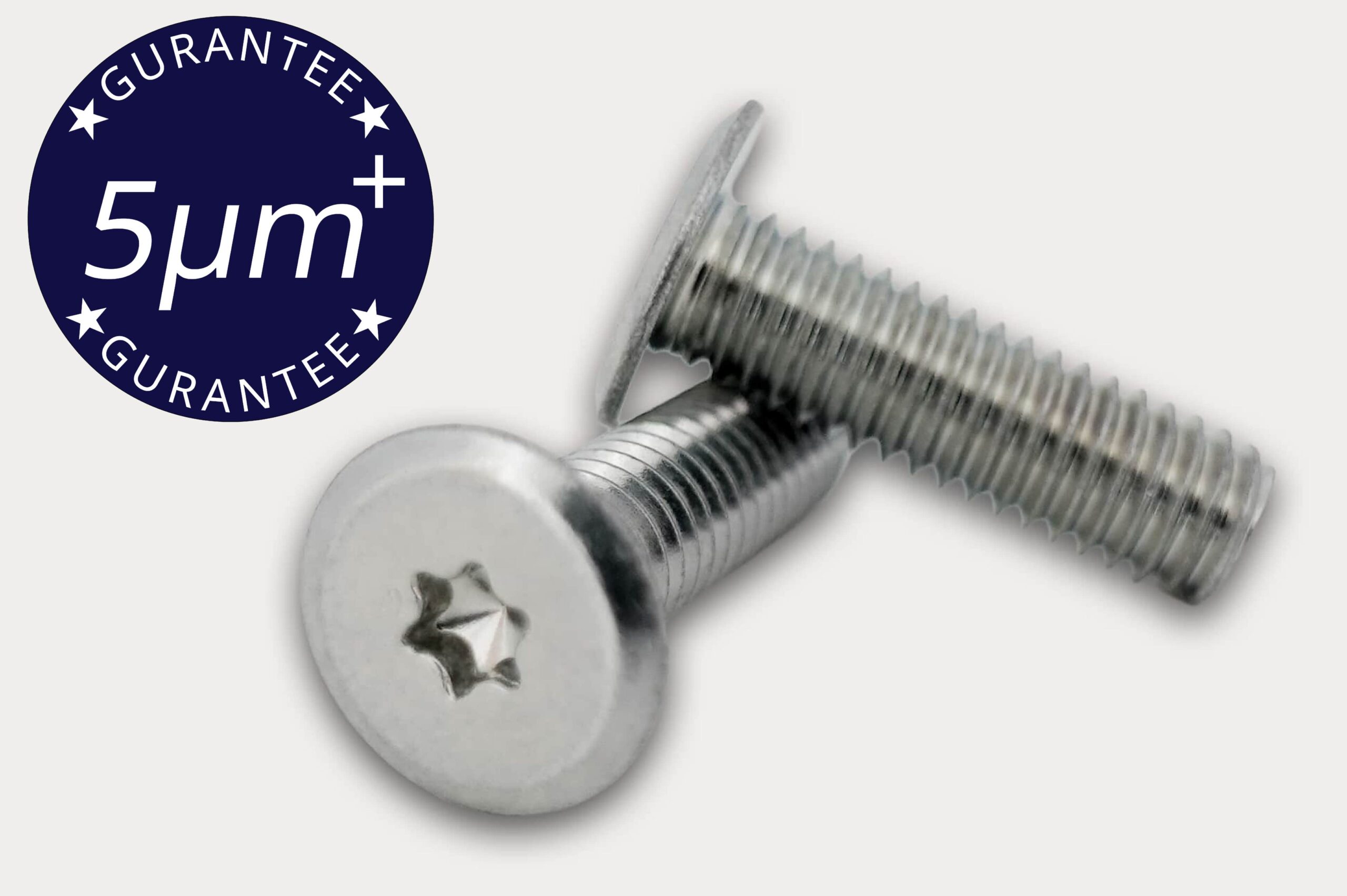

Material : Steel / Zinc 3Cr.(5mμ) Plated
| d | L | Part# |
|---|
| M2 | 4 | SH010204Cr3 |
| 5 | SH010205Cr3 |
| 6 | SH010206Cr3 |
| 8 | SH010208Cr3 |
| 10 | SH010210Cr3 |
| 12 | SH010212Cr3 |
| M2.5 | 4 | SH012504Cr3 |
| 5 | SH012505Cr3 |
| 6 | SH012506Cr3 |
| 8 | SH012508Cr3 |
| 10 | SH012510Cr3 |
| 12 | SH012512Cr3 |
| M3 | 6 | SH010306Cr3 |
| 8 | SH010308Cr3 |
| 10 | SH010310Cr3 |
| M4 | 6 | SH010406Cr3 |
| 8 | SH010408Cr3 |
| 10 | SH010410Cr3 |
| 12 | SH010412Cr3 |
| M5 | 6 | SH010506Cr3 |
| 8 | SH010508Cr3 |
| 10 | SH010510Cr3 |
| 12 | SH010512Cr3 |
| 16 | SH010516Cr3 |
| M6 | 10 | SH010610Cr3 |
| 12 | SH010612Cr3 |
| 16 | SH010616Cr3 |
| 20 | SH010620Cr3 |
