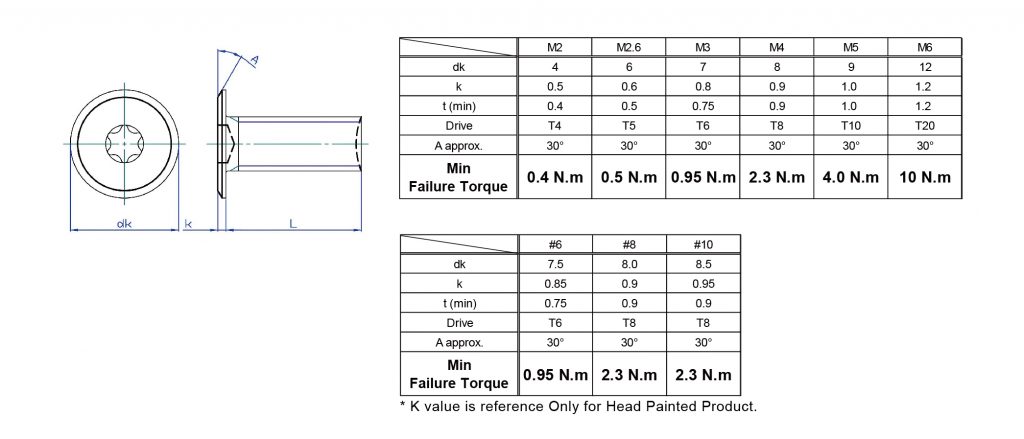

310Slim Steel 3Cr(5μm+)
Recess type: 6-Lobe
Size range: M3 – M5
Surface Hardness: HV400min
RoHS Compliant
| Size | Product | Part # | Tool # |
| M3 x 6 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010306Cr3 | T6 |
| M3 x 8 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010308Cr3 | T6 |
| M3 x 10 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010310Cr3 | T6 |
| M4 x 6 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010406Cr3 | T8 |
| M4 x 8 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010408Cr3 | T8 |
| M4 x 10 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010410Cr3 | T8 |
| M4 x 12 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010412Cr3 | T8 |
| M5 x 8 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010508Cr3 | T10 |
| M5 x 10 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010510Cr3 | T10 |
| M5 x 12 | 310Slim 6-lobe, Steel 3Cr(5μm+) | SH010512Cr3 | T10 |
